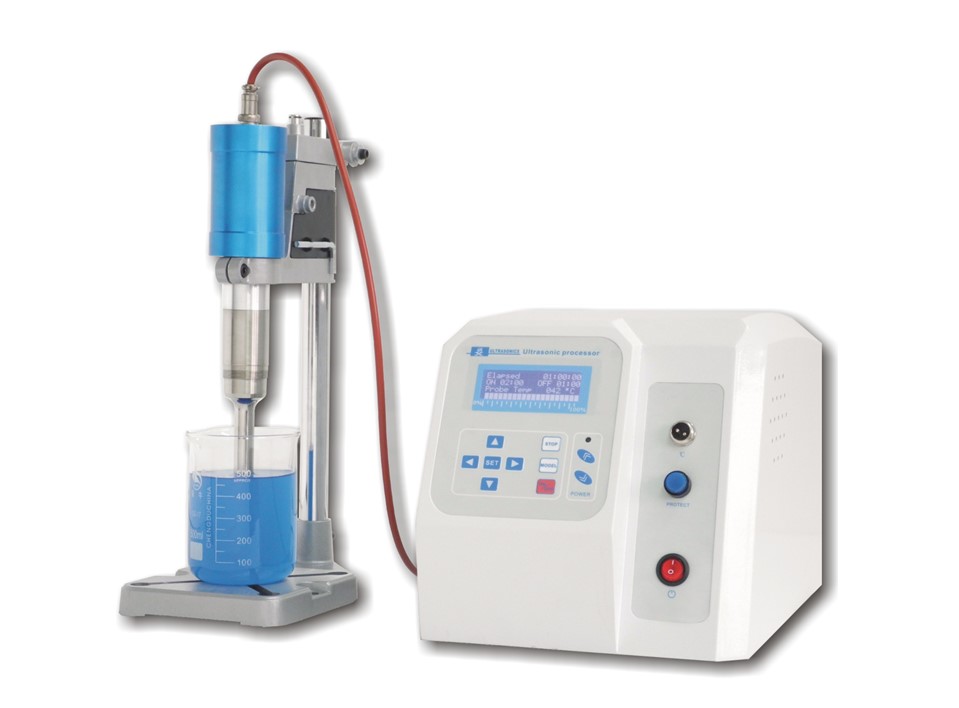

1200W ultrasonic sonicator processor upto 2000ml with sound proof box

立即咨询暂无内容

产品描述

Ultrasonic homogenizer has widely usage.

Application

1.Chinese medicine extraction, cell, bacteria, viral tissue breakage. For example, the extraction of cell contents.
2. Dispersion and homogenization of material particles.

3.Nano material dispersion

4.Silicon dioxide, carbon nanotubes, graphene
5.Accelerate dissolution, accelerate chemical reactions. For example for chemical synthesis

技术参数

Model No.	FS-1200N
Working Power	AC 220V 50Hz, single phase
Output Power in ultrasonic processor	1200w 20KHz
Piezoelectric variable frequency energy converter	CV33, PZT lead zirconate titanate piezoelectric ceramics
Power adjust	0%-100% 5% increment
Diameter	73mm
Length	165mm
Probe material	Ceramic Alumina,TI-64L-4V
Probe head diameter	20mm
Processing capacity	50ml~2000ml
Probe length	139mm
Sensor temperature	0~300 degree
Probe weight	450g
Timer & Temperature control	Digital Timer is displayed by LC panel Adjustable from 1 second to 99 hours Temperature sensor is included to protect sample from over-heated
Chamber	1.One sound-proof box is included to put ultrasonic processor into the chamber 2.One stainless steel lift platform is included to support liquid container at suitable height 3.Temperature sensor is installed inside chamber to touch with container to protect sample from over-heated
Product Dimensions	Chamber: 270mm(L) x 240mm(W) x 400mm(H) Control Box: 365mm(L) x 232mm(W) x 240mm(H)
