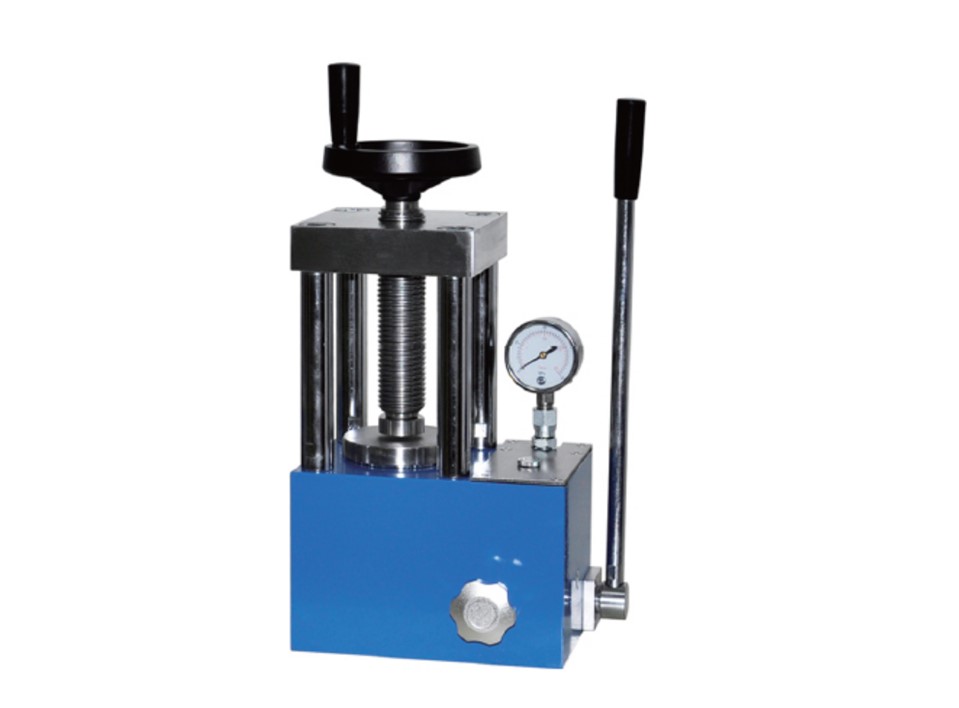

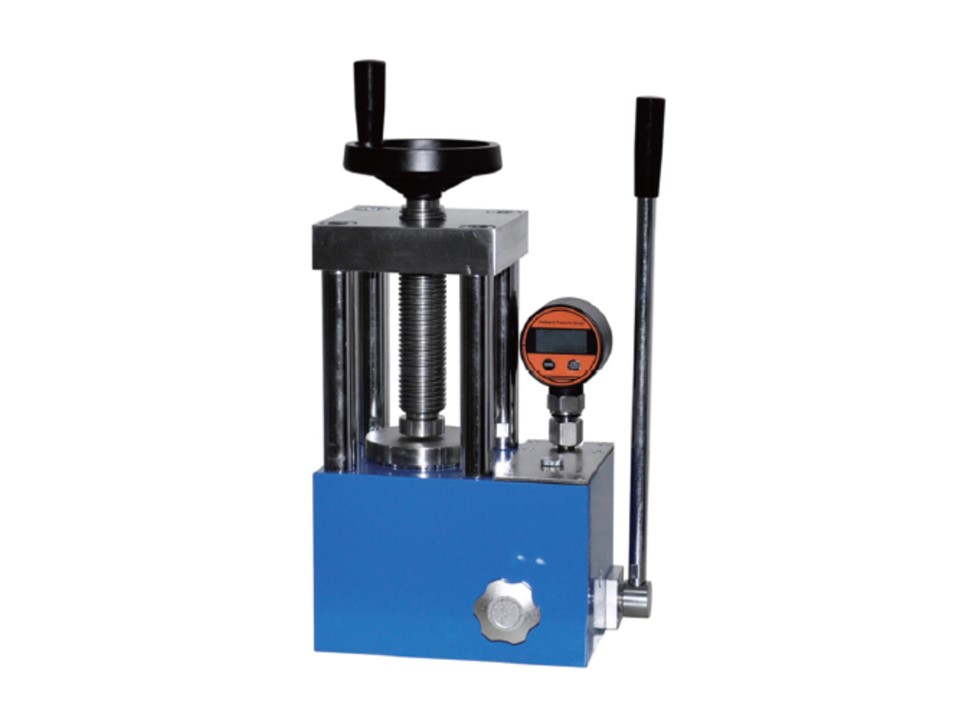

30 ton Laboratory pallet press with hydraulic pump CH-30T

产品描述

The 30T Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

技术参数


Model No.
CH-30T
Pressure Range
0~30T (0~31.5MPa)
Piston diameter
Φ110mm
Press Structure
All in one structure
Pressure gauge
Pressure intensity display
Maximum piston distance
40mm
Pressure stability
<1MPa/10min
Working table diameterΦ120mm
Working space
92*160mm
No. of columns
4pcs
Dimension
275*195*420
Gross Weight
56kg
