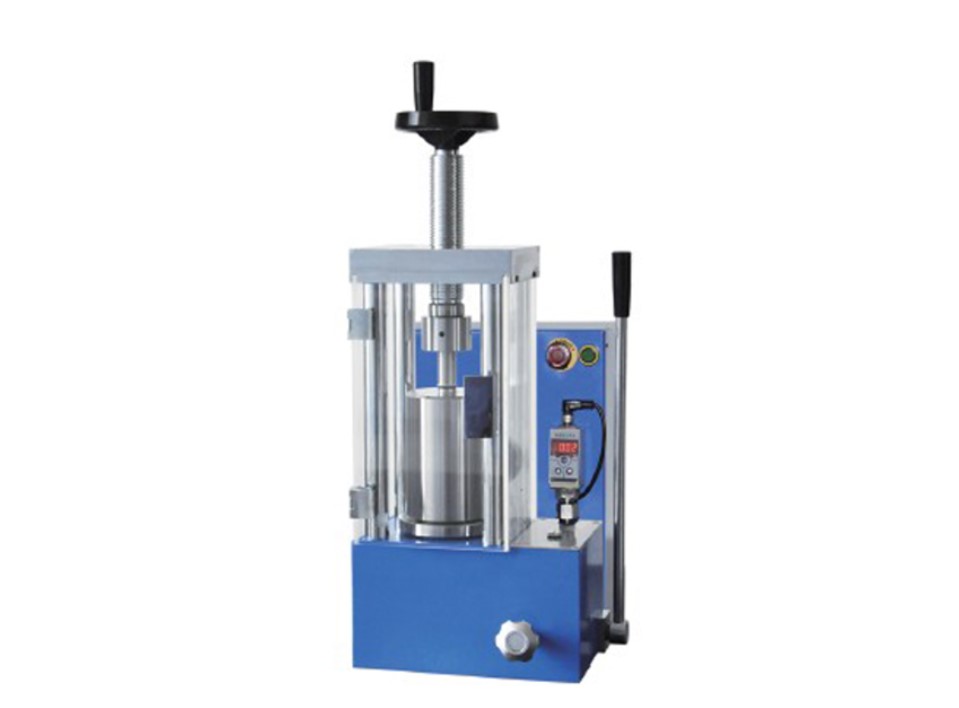

CHD-12J 12 ton electric CIP hydraulic press

产品描述

The 12T Laboratory electric CIP(Cold Isostatic Pressing) hydraulic press is a compact cold isostatic pressing machine which design for laboratory battery researching. The 20 ton cip pressing machine max pressing power is 12 ton, the CIP tank size is OD22*70mm

技术参数


Model No.
CHD-12J
Pressure Range
0~12T (0~17MPa)
Piston diameter
Φ95mm
Press Structure
All in one structure
Pressure gauge
Digital gauge 0.0-40.0MPa
Maximum piston distance
40mm
Pressure stability
<1MPa/10min
Pressing methodManual/Electric
Pressure Compensation methodAutomatic/Manually
CIP Pressure
0~300MPa
CIP TankΦ22*70mm

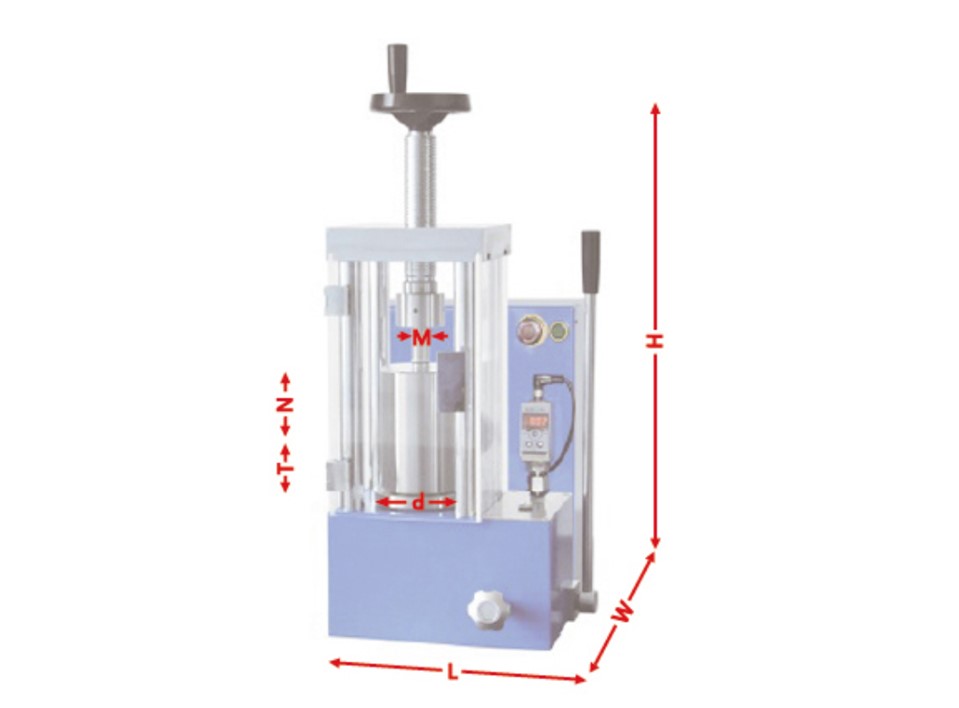

Dimension
305*430*530mm
Power supplyAC220V 50Hz
Gross Weight
110kg
