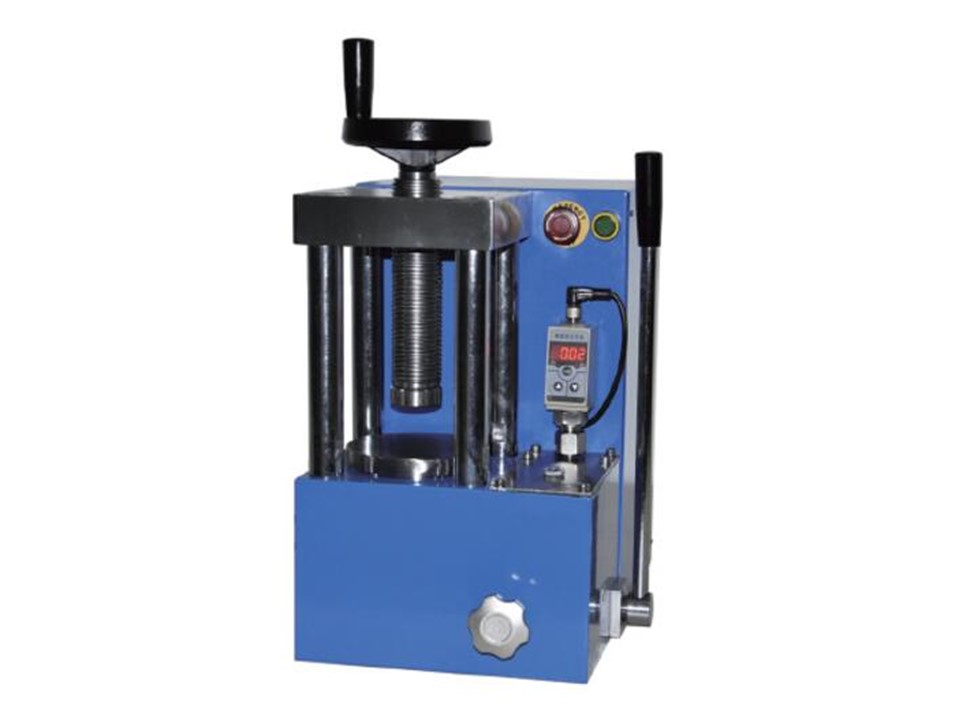

20 ton electric hydraulic press with digital gauge CHD-20S

产品描述

The 20T Laboratory Electric Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

技术参数


Model No.
CHD-20S
Pressure Range
0~20T (0~28MPa)
Piston diameter
Φ95mm
Press Structure
All in one structure
Pressure gauge
Pressure intensity display
Maximum piston distance
30mm
Pressure stability
<1MPa/10min
Pressing methodManual/Electric
Pressure Compensation methodAutomatic/Manually
Working table diameterΦ105mm
Working space
80*150mm
No. of columns
4pcs
Dimension
245*415*415mm
Power supplyAC220V 50Hz
Gross Weight
58kg
