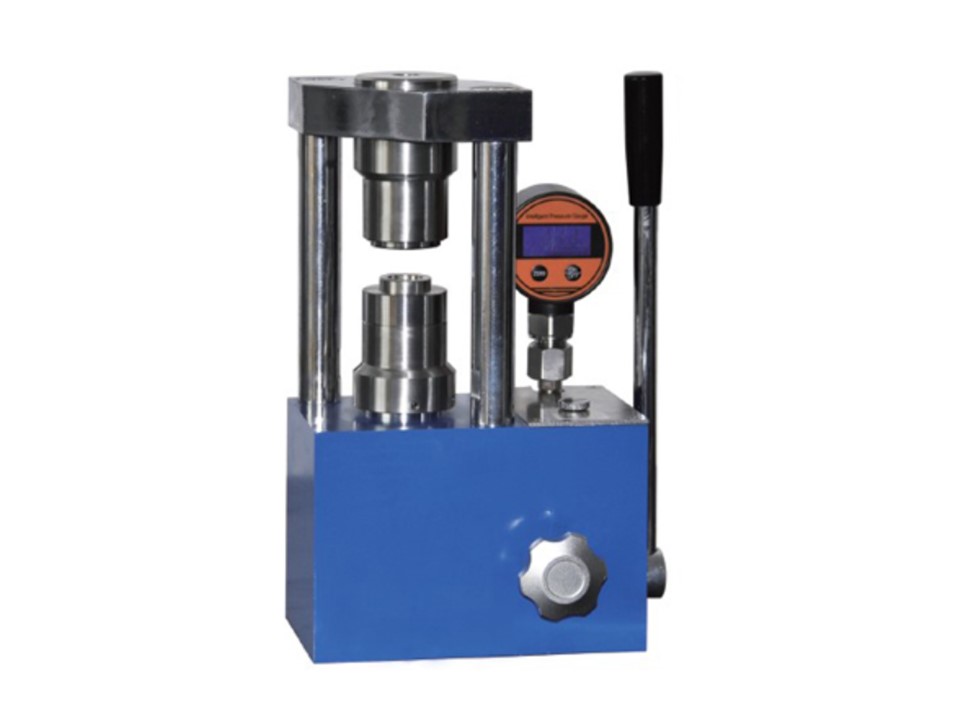

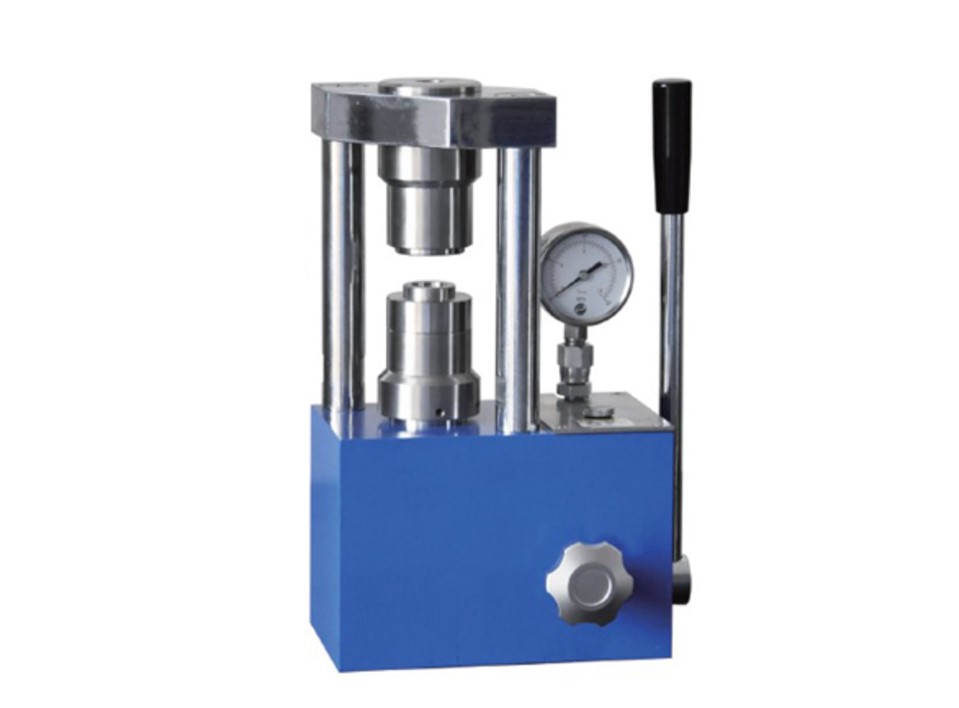

CH-5N 5 ton laboratory hydraulic crimper machine for coin cell battery

产品描述

CH-5N is a new design and CE Certified coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.   We don't suggest to use the machine inside glovebox.

技术参数

Model No.
CH-5N
Pressure Range
0~5T (0~31MPa)
Piston diameter
Φ45mm
Press Structure
All in one structure
Pressure gauge
Pressure intensity display
Standard moldCR20 sealing mold
Sealing moldCR16,CR20,CR24,CR30 for option
Sealing pressure0.8~1.2Ton
Crimpering moldCR16,CR20,CR24,CR30 for option
Crimpering pressure<0.4Ton
Machine size225*155*320mm
Gross Weight28Kg
