AFA-I Compact Tape Casting Coater with Vacuum Chuck and Film Applicator

产品描述

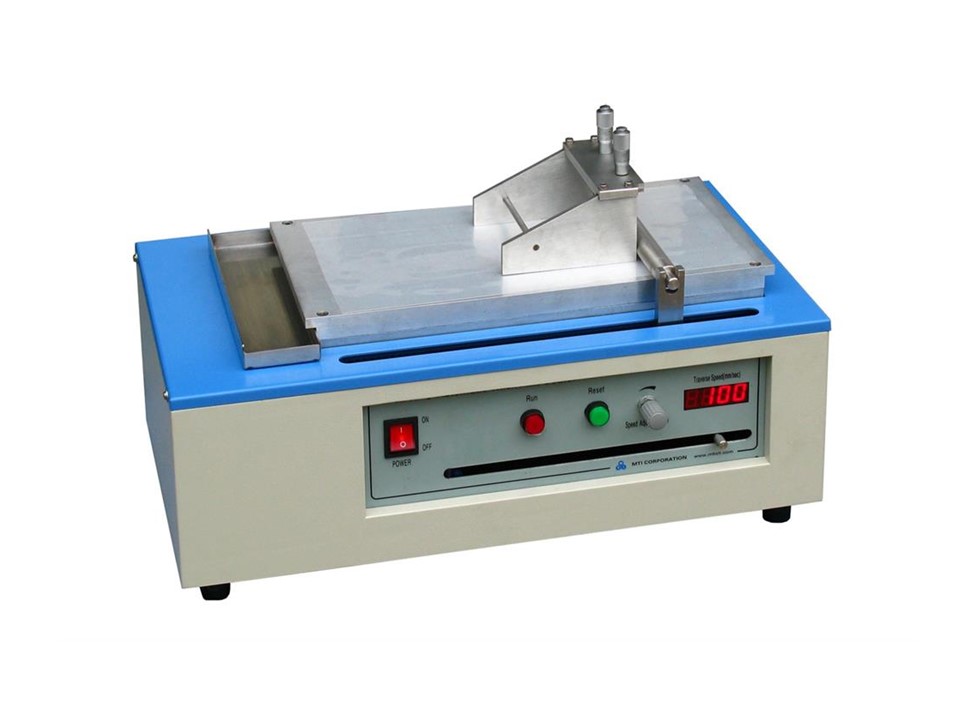

MSK-AFA-I is a CE Certified compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, One 100 mm width adjustable micrometer applicator (doctor-blade).

技术参数

Model
MSK-AFA-I
Working Power of Coater
Power adaptor: Input 100-240VAC, Output 24VDC
Traverse Speed
*10 - 100 mm/sec variable
*Accuracy: +/-10 mm/sec
Stroke Length
10 - 250 mm adjustable by using Adjustable Position Switch

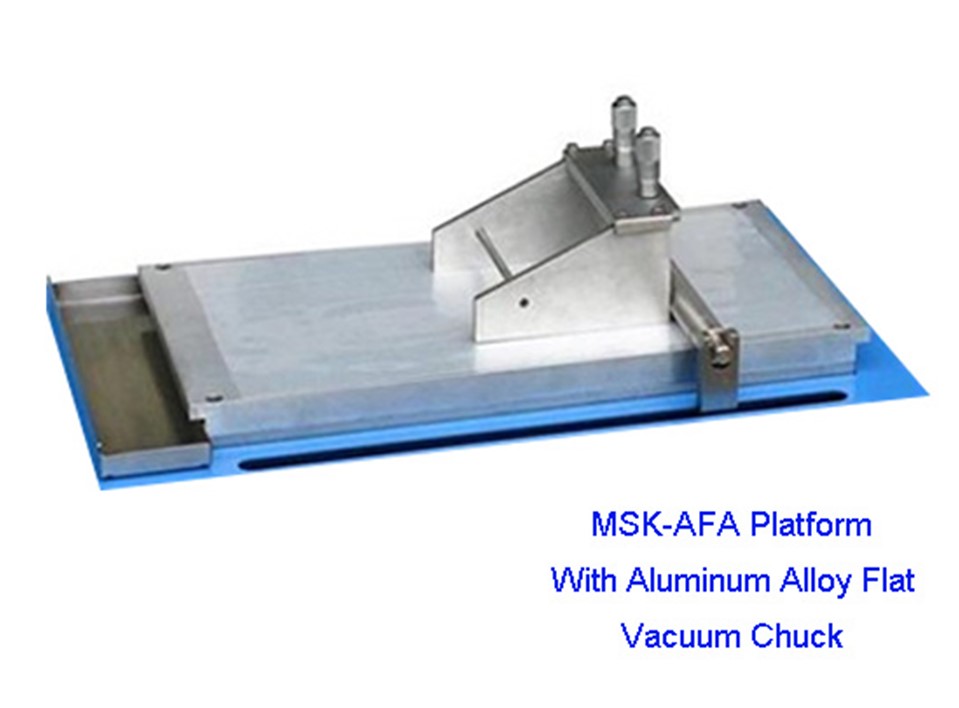

Vacuum Chuck
*Vacuum chuck made of Aluminum alloy with < 1.0 mm hole
*Vacuum Chuck Dimensions: 365mm(L) x 200mm(W)
Vacuum Pump
120L/min Oilless Vacuum Pump
Pump connector
*Vacuum control power switch is located on the front panel, and power plug ( female ) built in the back of the machine to connect an optional vacuum pump.

*The pump connector is compression type 8mm O.D tube fitting which is located on the back panel

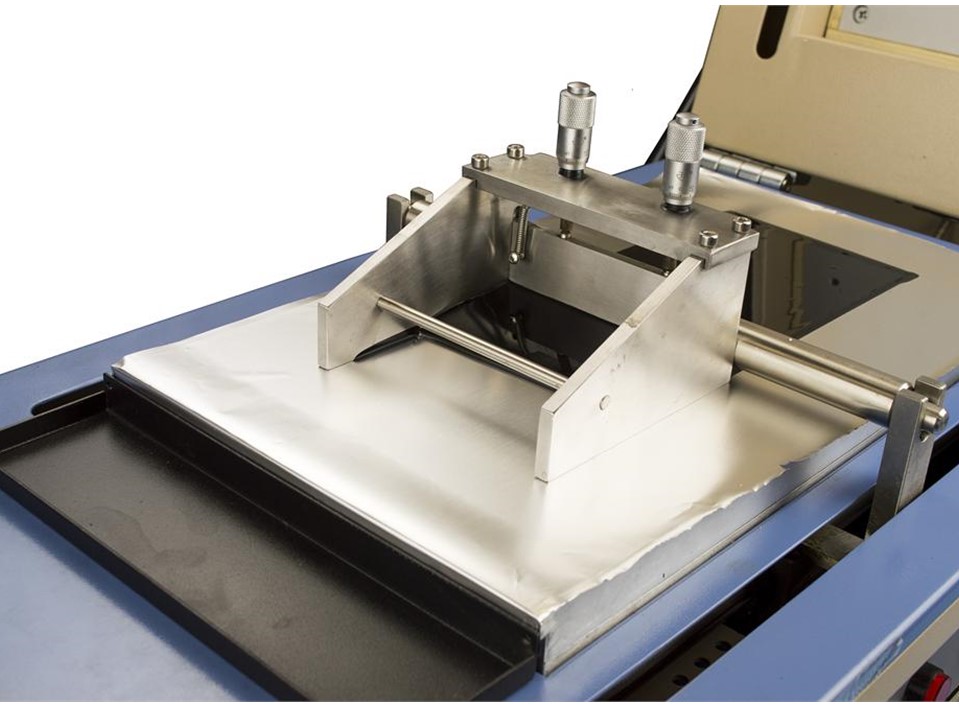

Accessories: Film Applicator
*One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm)
*Travel Pusher and waste plate are included for pushing the Film Applicator

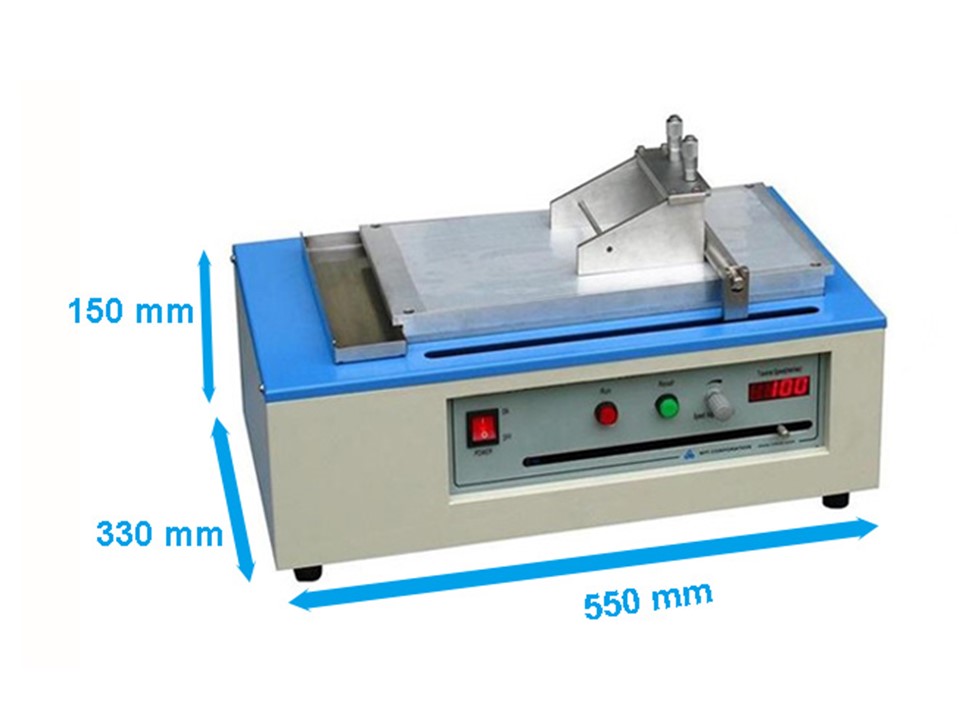

Product Dimensions
550mm(L) x 330mm(W) x 320mm(H)
Warranty
One Year limited warranty with lifetime support
Gross Weight
60Kg
