产品描述

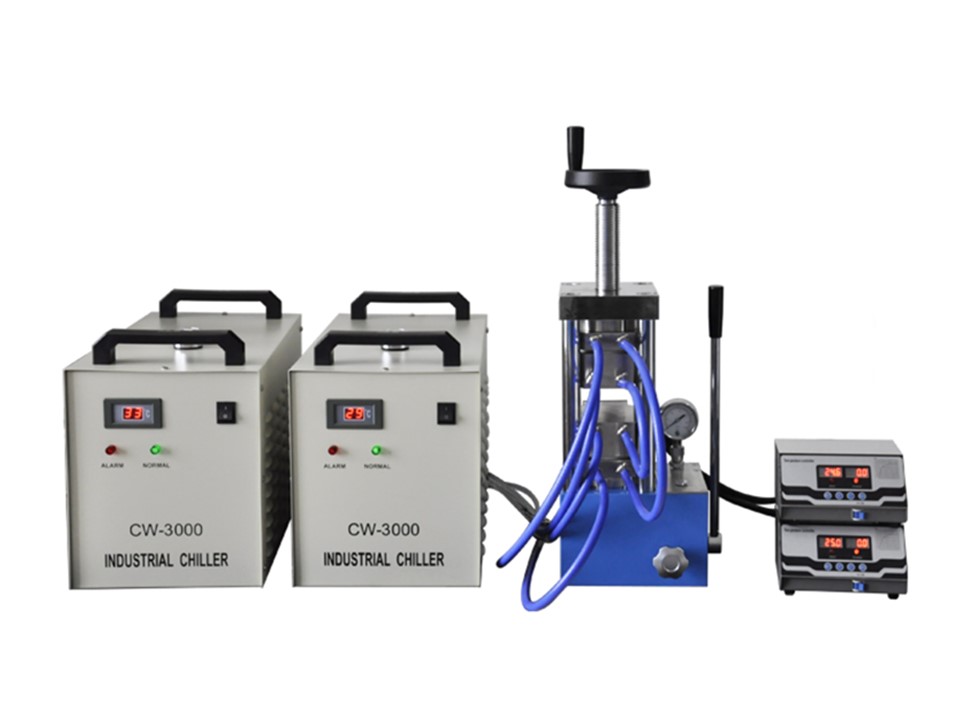

The 24T Laboratory Heating Pressing Machine is a compact heating press with double heating plate for laboratory using.The maximum heating temperature can upto 500 degree.Heating palte is 100*100mm
技术参数
Model No. | CHH-600CG |
Pressure Range | 0~24T (0~34MPa) |
Piston diameter | Φ95mm |
Press Structure | All in one structure |
Pressure gauge | Pressure intensity display |
| Max temperature | Rm~500 degree |
| Temperature accuracy | 0.1℃ |
| Cooling method | Water cooling |
| Heating plate size | Double Heating Plate 100*100mm |
| Machine dimension | 245*175*500mm |
| Power supply | 220V/600W |
Gross Weight | 58kg |
