产品描述

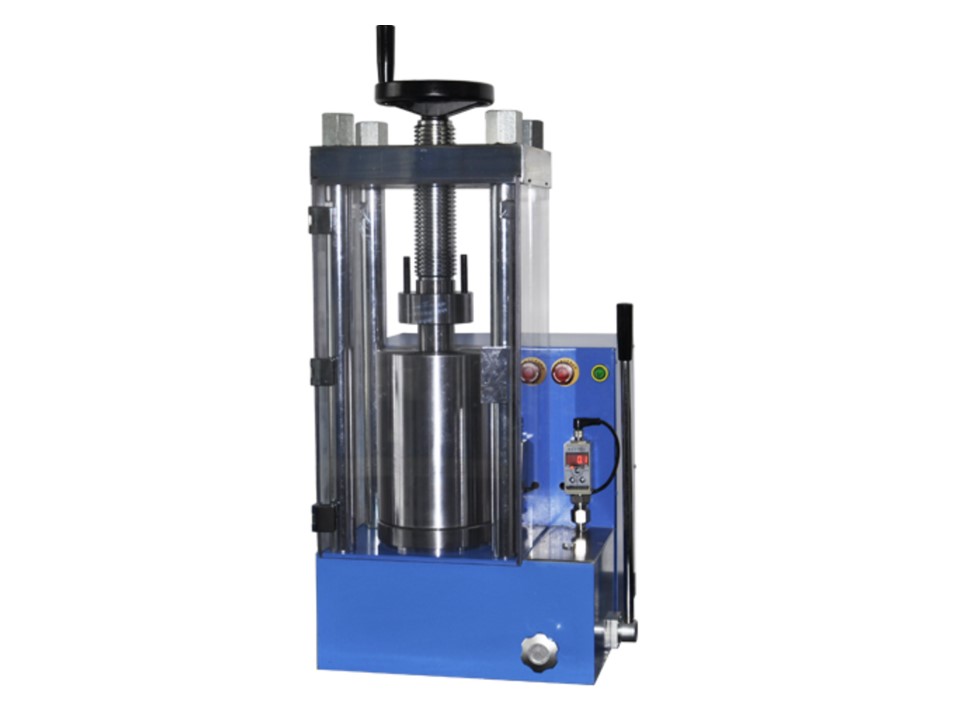

The 60T Laboratory electric CIP(Cold Isostatic Pressing) hydraulic press is a compact cold isostatic pressing machine which design for laboratory battery researching. The 60 ton cip pressing machine max pressing power is 60 ton, the CIP tank size is OD50*150mm
技术参数
Model No. | CHD-60J |
Pressure Range | 0~60T (0~34MPa) |
Piston diameter | Φ150mm |
Press Structure | All in one structure |
Pressure gauge | Digital gauge 0.0-40.0MPa |
Maximum piston distance | 50mm |
Pressure stability | <1MPa/10min |
| Pressing method | Manual/Electric |
| Pressure Compensation method | Automatic/Manually |
| CIP Pressure | 0~300MPa |
| CIP Tank | Φ50*150mm |
Dimension | 405*470*720mm |
| Power supply | AC220V 50Hz |
Gross Weight | 200kg |
