产品描述

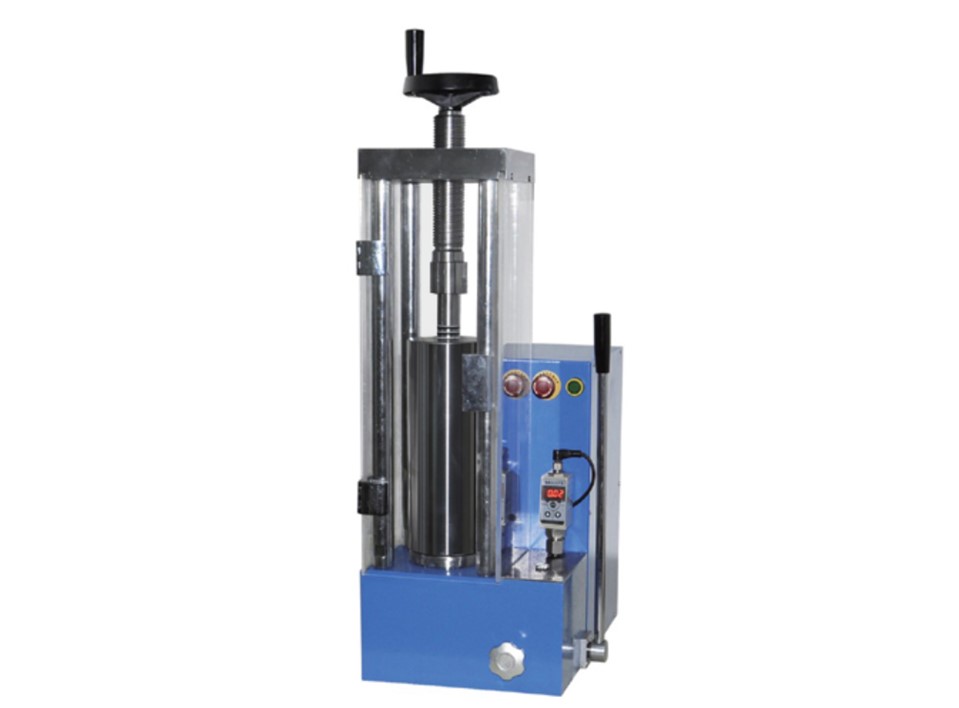

The 20T Laboratory electric CIP(Cold Isostatic Pressing) hydraulic press is a compact cold isostatic pressing machine which design for laboratory battery researching. The 20 ton cip pressing machine max pressing power is 20 ton, the CIP tank size is OD30*120mm
技术参数
Model No. | CHD-20J |
Pressure Range | 0~20T (0~21MPa) |
Piston diameter | Φ110mm |
Press Structure | All in one structure |
Pressure gauge | Digital gauge 0.0-40.0MPa |
Maximum piston distance | 40mm |
Pressure stability | <1MPa/10min |
| Pressing method | Manual/Electric |
| Pressure Compensation method | Automatic/Manually |
| CIP Pressure | 0~300MPa |
| CIP Tank | Φ30*120mm |
Dimension | 305*430*600mm |
| Power supply | AC220V 50Hz |
Gross Weight | 120kg |
