11-40mm square press die

产品描述

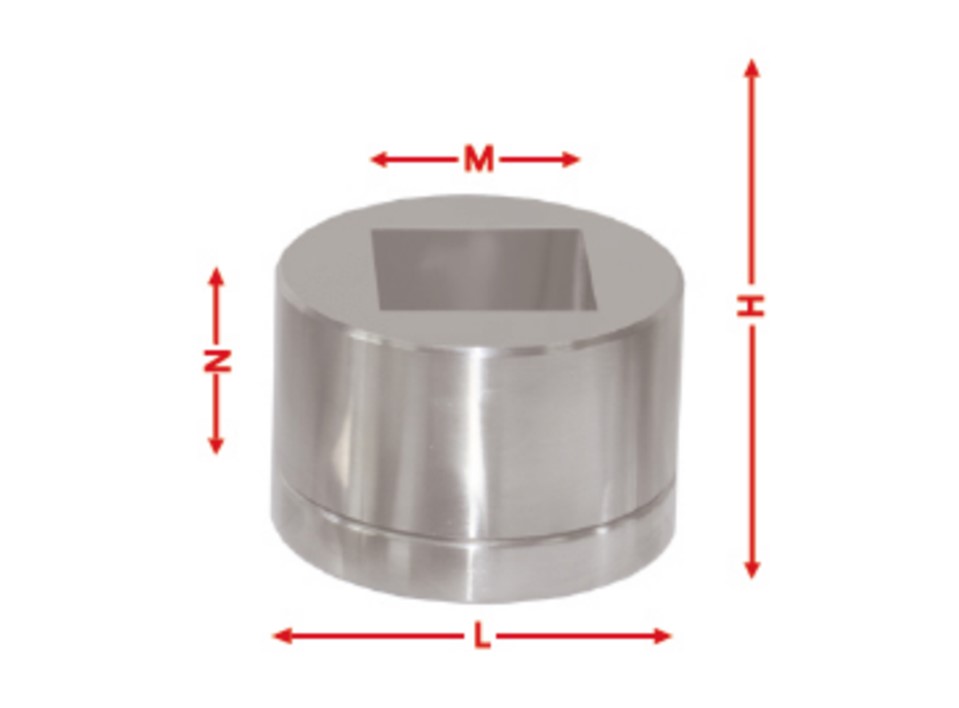

this PMF-A serial press die is a round die which made by alloy tool steel Cr12MoV, it's indenter hardness is HRC60-HRC62. the round pellet die has several sample size for choose: 12*12mm,15*15mm,16*16mm,18*18mm,20*20mm,22*22mm,25*25mm,30*30mm,32*32mm,35*35mm,40*40mm.

技术参数

Model No.PMF-B
Die MaterialCr12MoV
Indenter HardnessHRC60-HRC62
Sample Size12*12mm,15*15mm,16*16mm,18*18mm,20*20mm,22*22mm,25*25mm,30*30mm,32*32mm,35*35mm,40*40mm
Cavity Depth30mm,40mm,45mm
DimensionΦ53*120mm;Φ73*133mm;Φ88*150mm
Weight
1.2kg,2.4kg,4.8kg
