产品描述

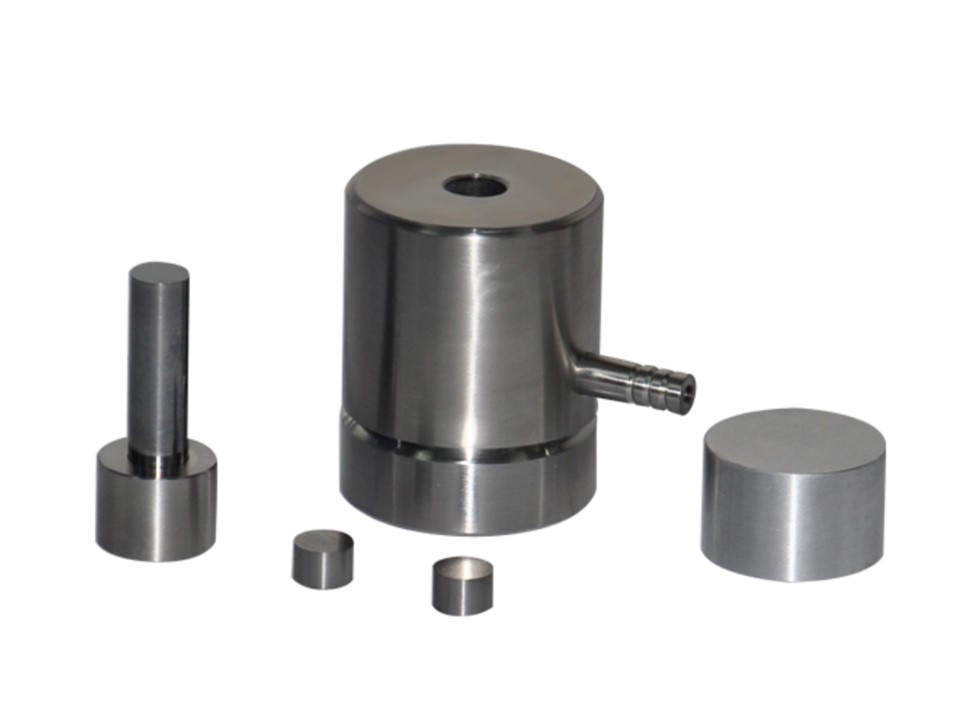

this PMY-B serial press die is a round die which made by high-speed tool steel from Japen ASSAB+17, it's indenter hardness is HRC68-HRC70. the round pellet die has several sample size for choose: Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ11.5mm,Φ12mm,Φ12.7mm,Φ13mm.The cavity depth is 20mm.
技术参数
| Model No. | PMY-B |
| Die Material | High speed tool steel from Japan ASSAB+17 |
| Indenter Hardness | HRC68-HRC70 |
| Sample Size | Φ7,Φ8,Φ9,Φ10,Φ11,Φ11.5,Φ12,Φ12.7Φ13mm |
| Cavity Depth | 30mm |
| Dimension | Φ43*93mm |
| Weight | 0.67Kg |
