产品描述

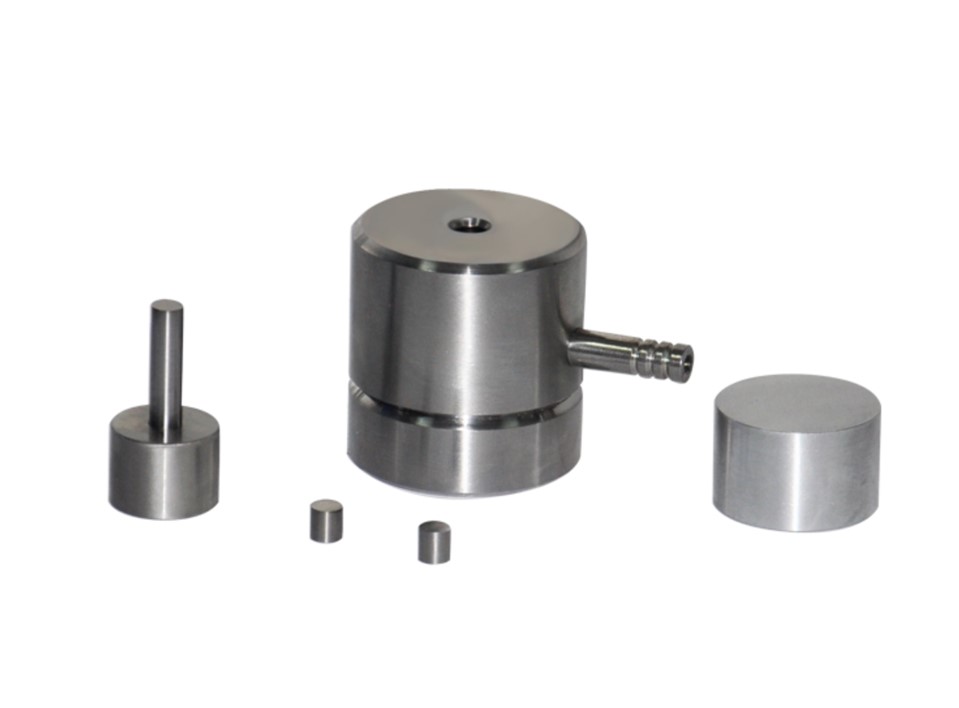

this PMY-A serial press die is a round die which made by high-speed tool steel from Japen ASSAB+17, it's indenter hardness is HRC68-HRC70. the round pellet die has several sample size for choose: Φ3mm,Φ4mm,Φ5mm,Φ6mm. The cavity depth is 20mm.
技术参数
| Model No. | PMY-A |
| Die Material | High speed tool steel from Japan ASSAB+17 |
| Indenter Hardness | HRC68-HRC70 |
| Sample Size | Φ3,Φ4,Φ5,Φ6mm |
| Cavity Depth | 20mm |

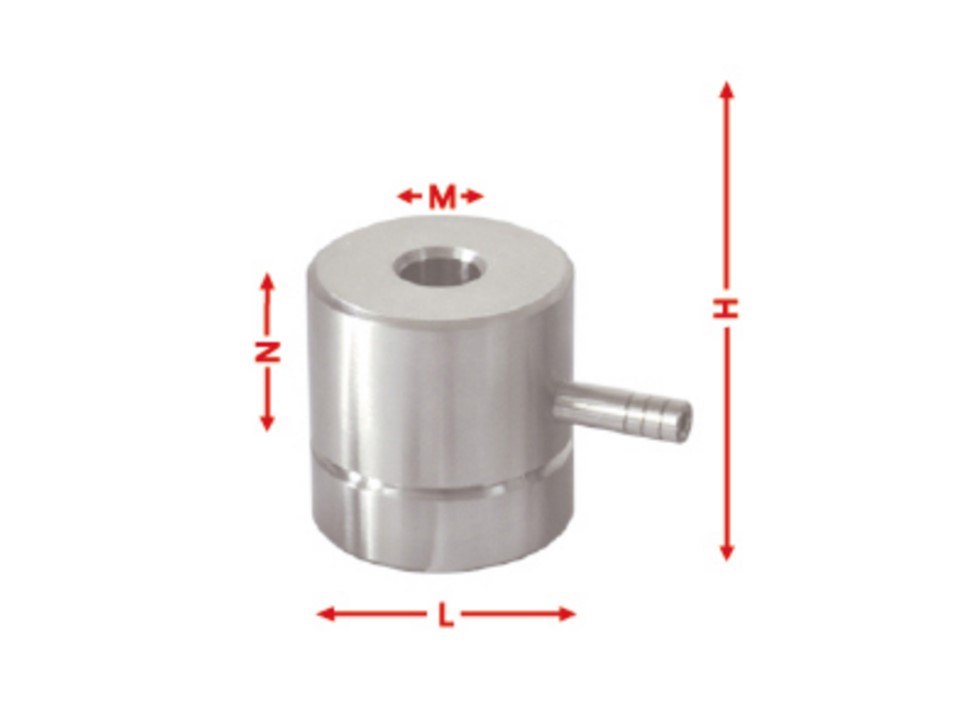

| Dimension | Φ43*78mm |
| Weight | 0.55Kg |
