产品描述

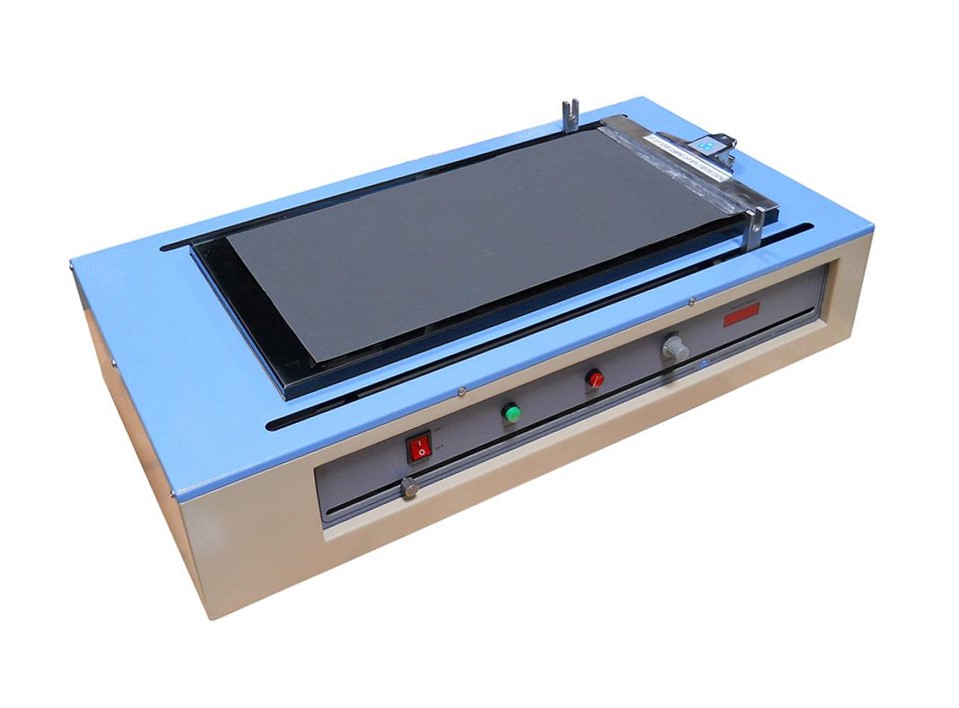

MSK-AFA-II is a CE Certified compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, One 100 mm width adjustable micrometer applicator (doctor-blade).
技术参数
Model | MSK-AFA-II |
Working Power of Coater | Power adaptor: Input 100-240VAC, Output 24VDC |
Traverse Speed | *5 - 100 mm/sec variable *Accuracy: 10mm/sec |
Stroke Length | 10 - 550 mm adjustable by using Adjustable Position Switch |
Platform | *600mm L x 300mm W x 20mm Thick flat tempered glass plate *One clip is included to keep the substrate stable during coating |

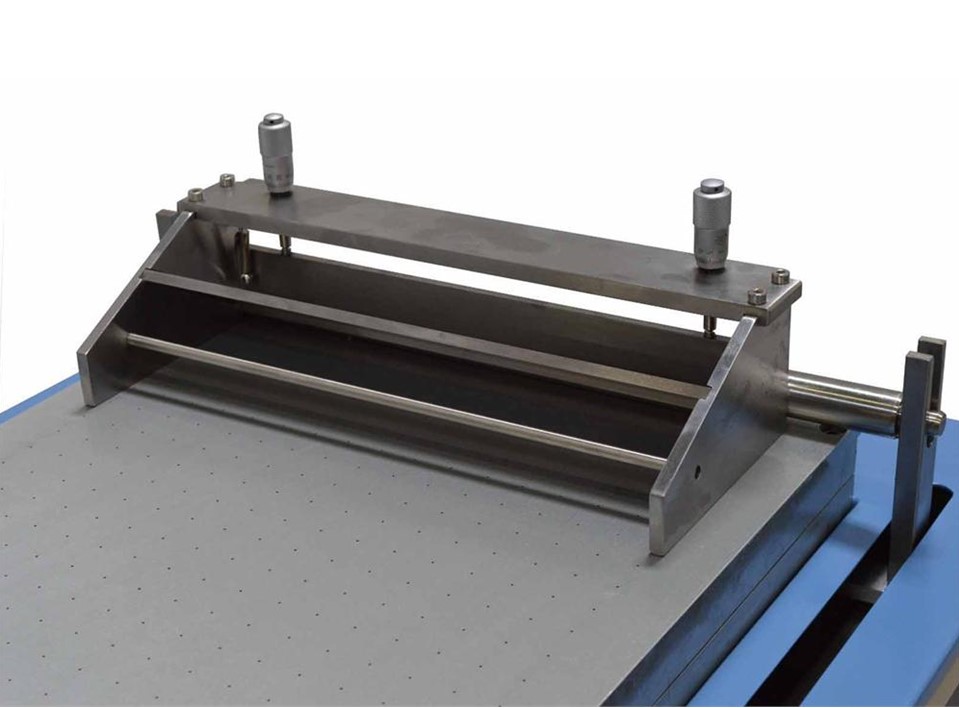

Film Applicator | *One 250 mm width Micrometer Adjustable Film Applicator is included with adjustable thickness from 0.01 mm - 5 mm *Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating |
Product Dimensions | 805mm(L) x 430mm(W) x 223mm(H) |
Warranty | One Year limited warranty with lifetime support |
Gross Weight | 60Kg |
