产品描述

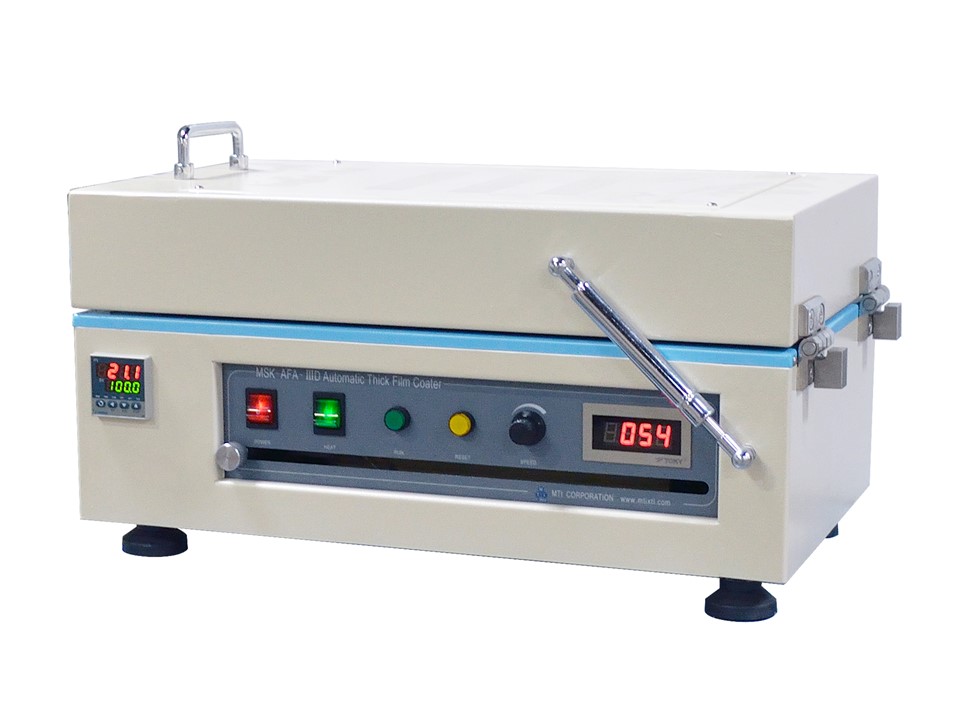

MSK-AFA-III is a CE Certified compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, One 100 mm width
adjustable micrometer applicator (doctor-blade). Heating plate with digital controller either on top or bottom is optional for drying up to 100°C with +/-1°C temperature accuracy. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating
技术参数
Model | MSK-AFA-III |
Working Power of Coater | Power adaptor: Input 100-240VAC, Output 24VDC |
Traverse Speed | *10 - 100 mm/sec variable *Accuracy: +/-10 mm/sec |
Stroke Length | 10 - 250 mm adjustable by using Adjustable Position Switch |
Vacuum Chuck | *Vacuum chuck made of Aluminum alloy with < 1.0 mm hole *Vacuum Chuck Dimensions: 365mm(L) x 200mm(W) Note: You may order a glass plate to coat slurry on porous substrate |
Vacuum Pump | 120L/min Oilless Vacuum Pump |
Pump connector | *Vacuum control power switch is located on the front panel, and power plug ( female ) built in the back of the machine to connect an optional vacuum pump. *The pump connector is compression type 8mm O.D tube fitting which is located on the back panel |

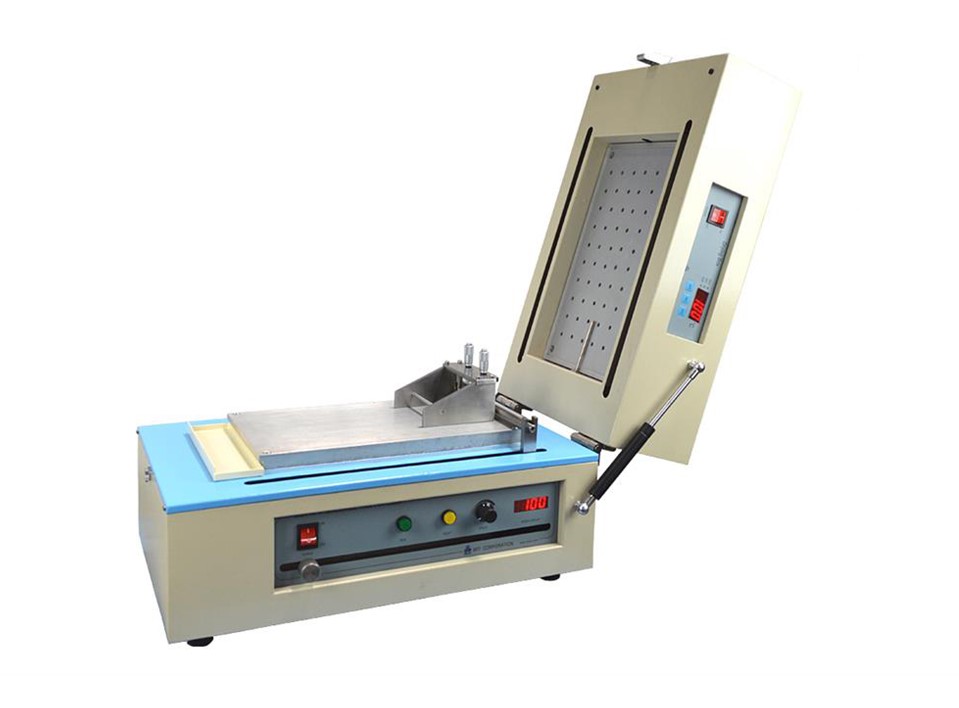

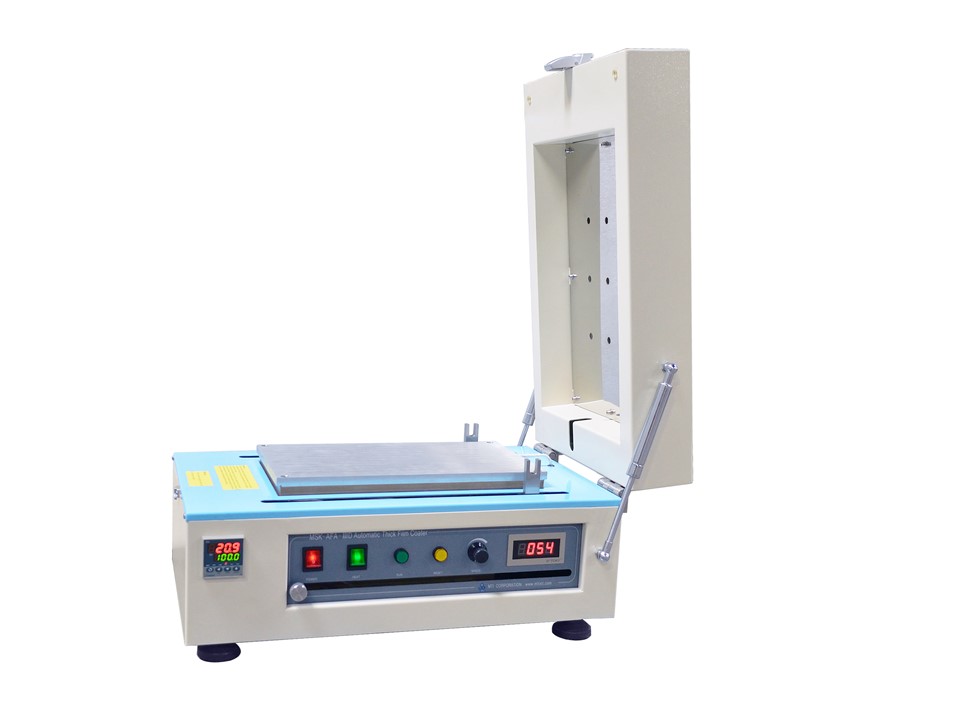

Heating Cover | *Pre-installed on the top cover *Built-in digital temperature controller with accuracy of +/-1°C *Suspension support helps open cover easily and safely *Max. Heating Temp.: 100°C Note: In order faster and uniform heating, please preheated vacuum chunk to 60- 70oC before coating, and keep heating during coating, then close cover and increase temperature to ~100oC after coating |
Accessories: Film Applicator | *One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm) *Travel Pusher and waste plate are included for pushing the Film Applicator |
Product Dimensions | 550mm(L) x 330mm(W) x 320mm(H) |
Warranty | One Year limited warranty with lifetime support |
Gross Weight | 80Kg |
