产品描述

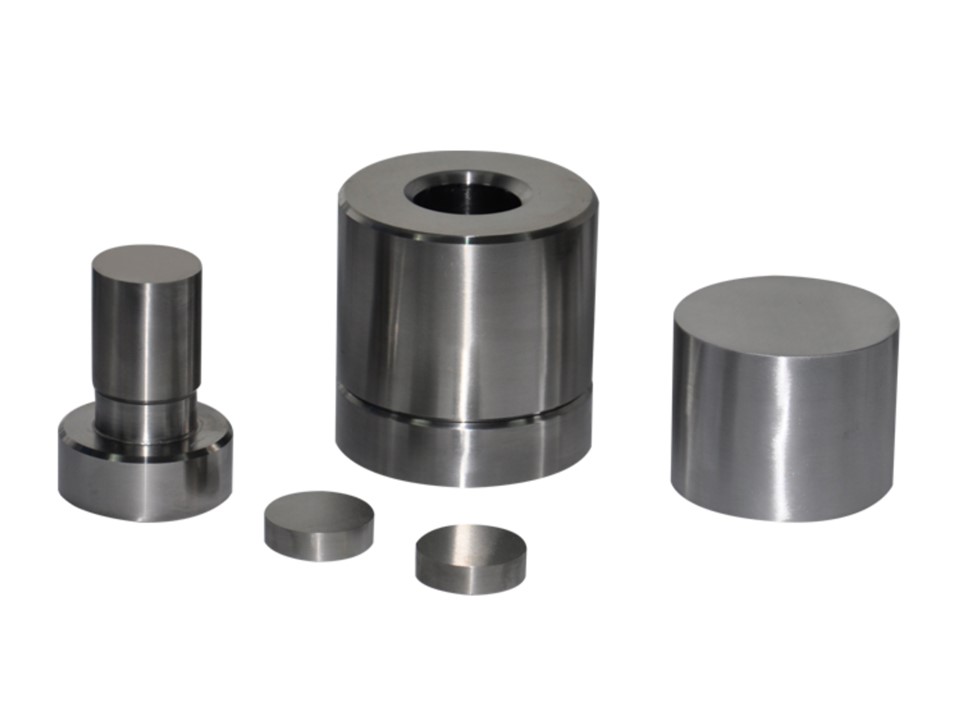

this PMY-D serial press die is a round die which made by alloy tool steel Cr12MoV, it's indenter hardness is HRC60-HRC62. the round pellet die has several sample size for choose: Φ28mm,Φ30mm,Φ32mm,Φ35mm,Φ40mm.The cavity depth is 45mm.
技术参数
| Model No. | PMY-D |
| Die Material | Cr12MoV |
| Indenter Hardness | HRC60-HRC62 |
| Sample Size | Φ28mm,Φ30mm,Φ32mm,Φ35mm,Φ40mm |
| Cavity Depth | 45mm |

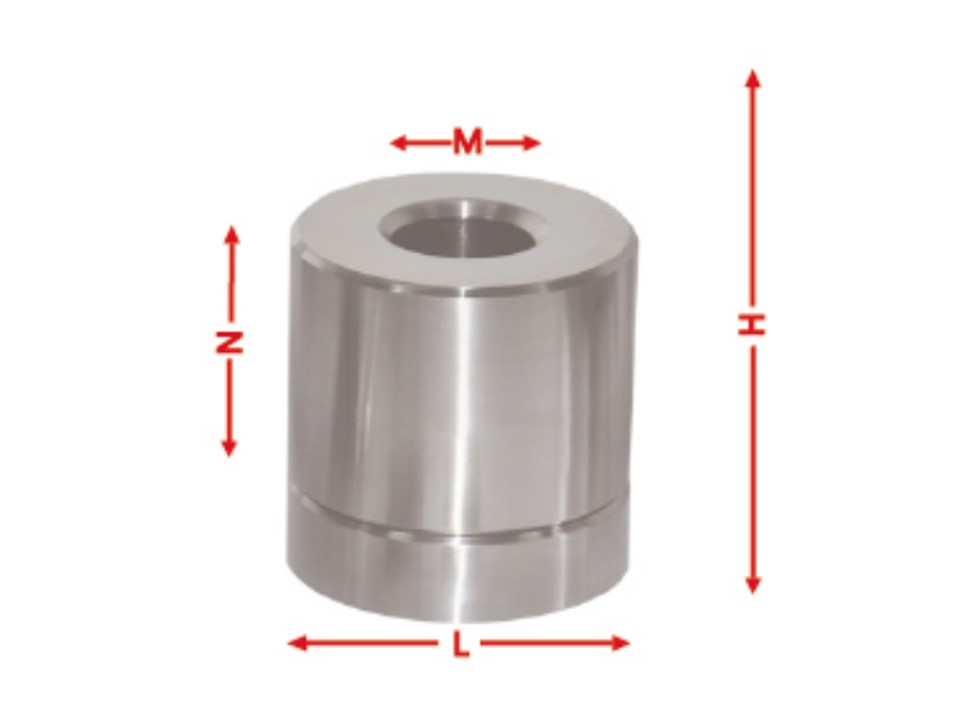

| Dimension | Φ73*133mm |
| Weight | 2.9Kg |
